Description
SN1000 Specs
Name | LED Infrared Red Light Panel |
LED Output Power | 1000W |
Irradiance(Power Density) | 194mw/cm2 at 3 inches |
Wavelengths(Light Spectrum) | 630nm:660nm:810nm:850nm or Customize |
Size | Length:36″(910mm), Width: 9.1″(230mm), Height:2.6″(65mm) |
Treatment Max Area | 50″x26″ |
Best For | Full Body Treatment |
Controlling | LCD Screen and Remote Control |
Timing | For 1 to 60 Minutes |

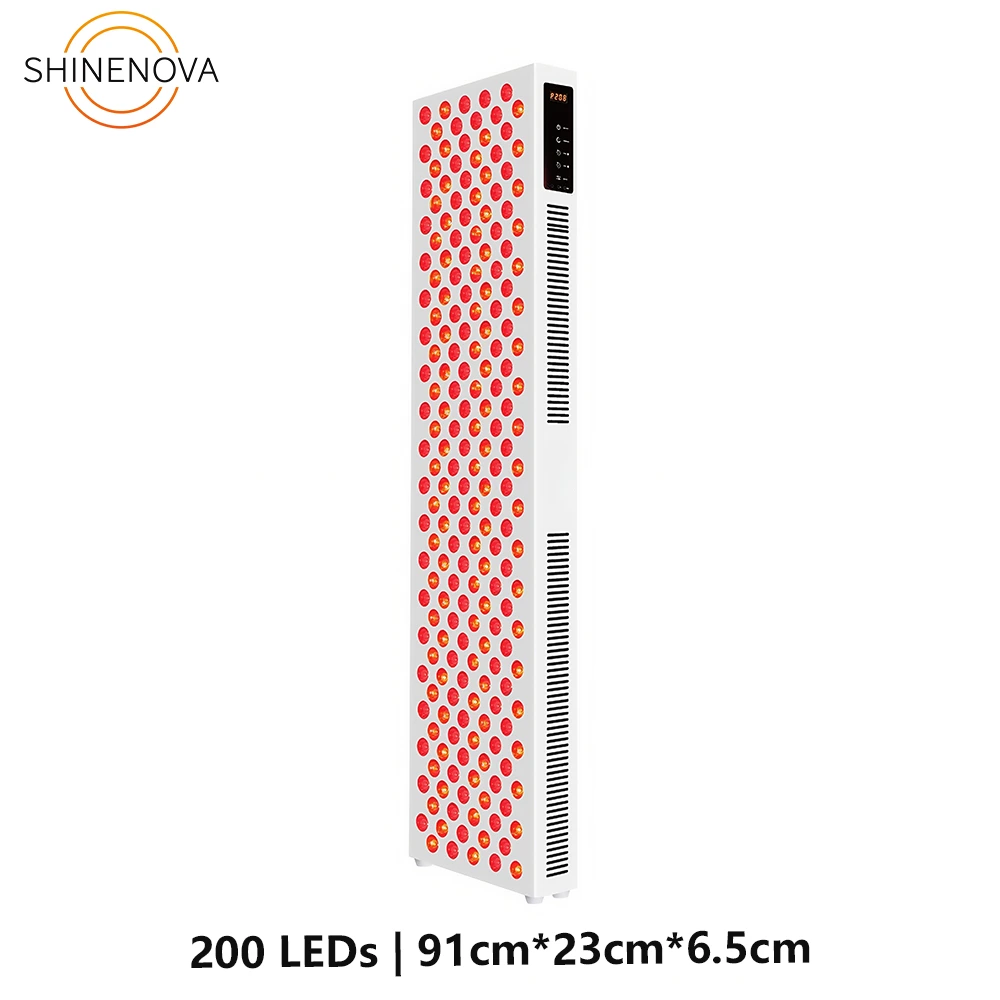

LEDs | 200 pcs |
LED Quality | Medical-Grade 5W LEDs |
Flicker | No Flicker |
Focusing Lens Beam Angle | 30 Degree |

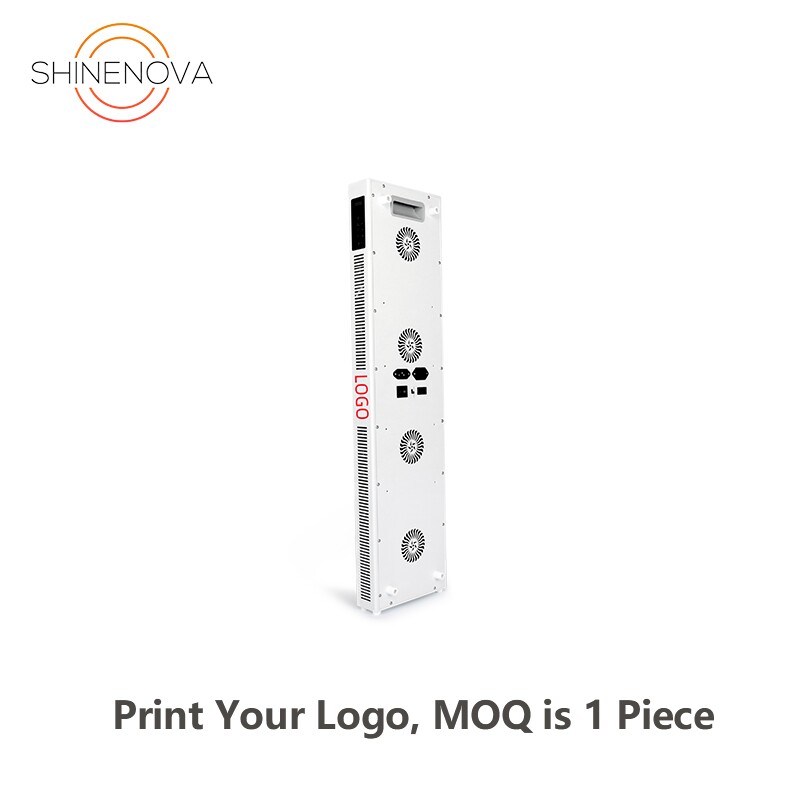

Silent Cooling Fans | 4 pcs |
Weight | 6.5KG / 14.3LBS |
EMF Emission | 0.0 µT @ 4” |
Electrical Input | 100-240VAC 50/60Hz |
Power Consumption | 315W |
Certifications | FDA, CE, ROHS, FCC |
LED Lifespan | 100,000 hours |
Warranty | 3 Years |
30° Beam Angle LEDs
The beam angle determines the level of intensity at which the beam of light in a panel connects with your skin. The 30° beam angle is great for deep tissue penetration to effectively stimulate cells while covering a generous area of skin or tissue. This range caters to both specific skin concerns and deeper muscle or joint issues.
Our medical-grade red light therapy panels are designed with lights at precisely 30-degree angles, at this range, the light is focused enough to provide therapeutic depth, yet spread out enough to cover a reasonable area.
Time Your Sessions
Embedded within the red light panel is a timer with a countdown display, providing real-time information about your session’s remaining time. Digital timer to keep your sessions within the optimal range from 1 – 60 minutes.
You can conveniently set the timer in one-minute increments, affording you the flexibility to customize the session duration to your liking. 3 mode light settings: all red(R), all near-infrared(NIR) or combo red(R) and near-infrared(NIR).
Advanced Remote Control
The advanced remote control empowers you to remotely manage all the features of the red light therapy panel, offering complete access to the panel’s display features.
This is suitable for you to conveniently control the red panel while lying down or at a distance, and when you have to interrupt the red light therapy, you can pause it without having to re-time it.
What's in The Packaging?
1. RJ11 Digital Link Cable
2. Eye Protection Goggles
3. Red Light Therapy Panel (LED Therapy Light)
4. Remote Control
5. Power Cable
6. Door Hook
7. Cable Assembly & Snap Links
8. Hanging Hardware
Customizable Items
1. LED Light Wavelengths (480nm, 830nm, 940nm, 1060nm)
2. LEDs Ratio (1:1:1:1)

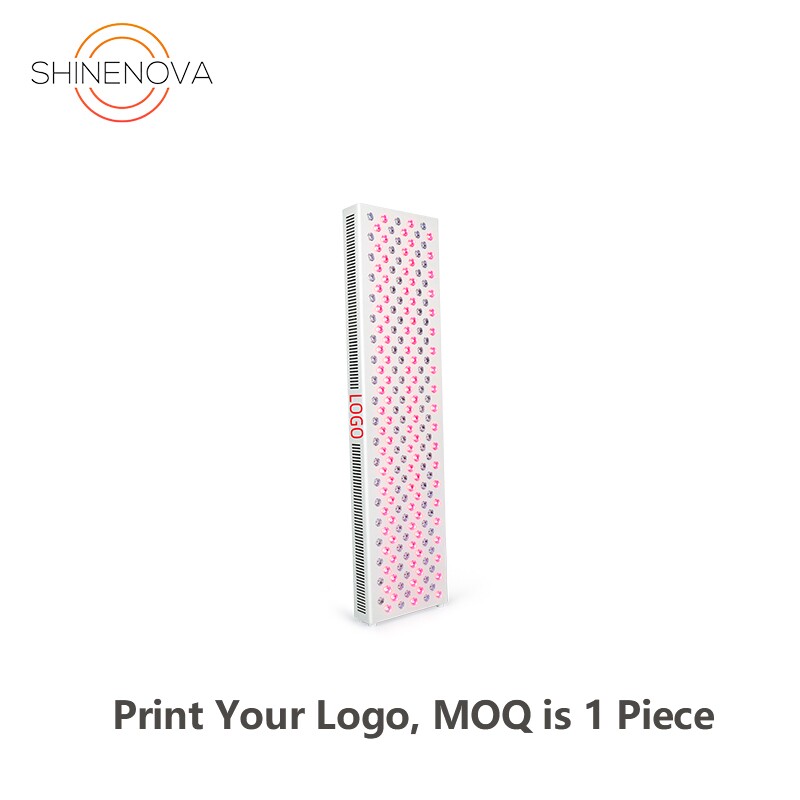

3. Your Brand Logo
Request for quotation
If you are interested in this product and want to import it from China to your country for sale or personal use, please fill out the form below to contact us for product price and more information, we will check the shipping cost for you. ShineNova is a manufacturer and exporter in China, we support customized products and packaging with your brand logo, and dropshipping services.
